Sample Stage Options

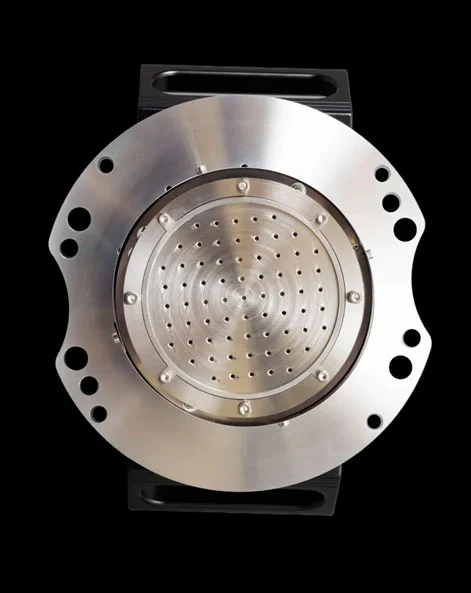

The HEX sample stage is fitted with an outer clamp ring for holding wafers, in addition to including holes for the individual clamping of smaller samples.

Sticking with the modular design philosophy of the HEX system, the sample stages are fully interchangable, so a static sample stage could easily be switched with, for example, a rotating heating bias table, with no specialist engineer assistance required.

The options available are:

Rotation (5-28 rpm)
Heating (up to 800 ºC)
RF and DC bias

Water Cooling (to 15 ºC)
Peltier Plate Cooling (to -10 ºC)
Thermal Gradient (Δ40 ºC)

Please refer to the brochure above or extra information below for more insight on our sample stages.

THE HEX SERIES

Complete Flexibility and Modularity

Download Brochure

Sample Stages

ROTATING & HEATING STAGE

The stage may be upgraded to one which incorporates sample rotation and heating.

The rotation (5-28rpm as standard) improves the film uniformity dramatically and is recommended for samples with dimensions greater than 15mm and/or where good uniformity is important.

The stage has options for heating to 800C which will result in improved film morphology for some materials. Due to PID technology, this temperature is accurately controlled to within one degree.
